Home / Product / SFK Series / Industrial Plug

Industrial Plug

Shangfeng is willing to cooperate sincerely with all customers to grow and develop together.

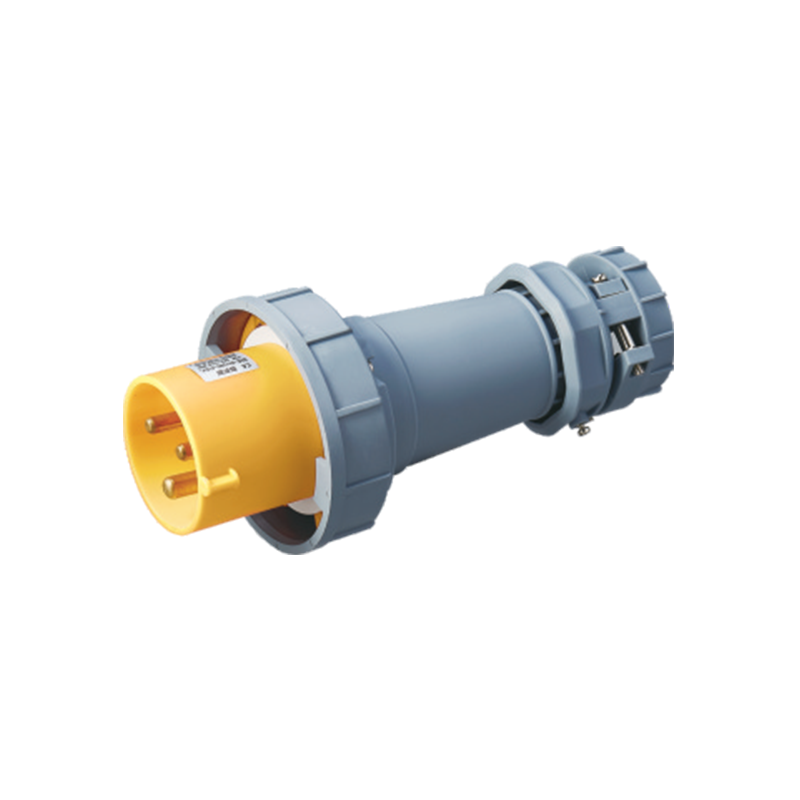

SFK-1570 SFK-3399 Industrial Plug

SFK-1570 SFK-3399

Earth contact position 4h
Rated current(A) 63 125
Pole 3

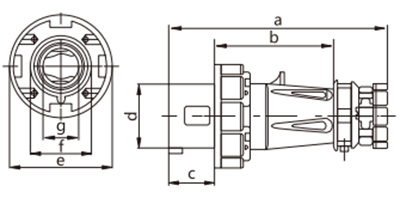

Dimension(mm) a 238.9 286
b 179.5 219
c 51.1 57
d 69.5 81.1
e 113 131.5
f 75.5 83.3
g 36.5 42.5
Cable nominal cross-section area(mm²) 10-16 25-35
Current(A):  63A,125A
Voltage(V):  110-130V~2P+E
Protection degree:  IP67

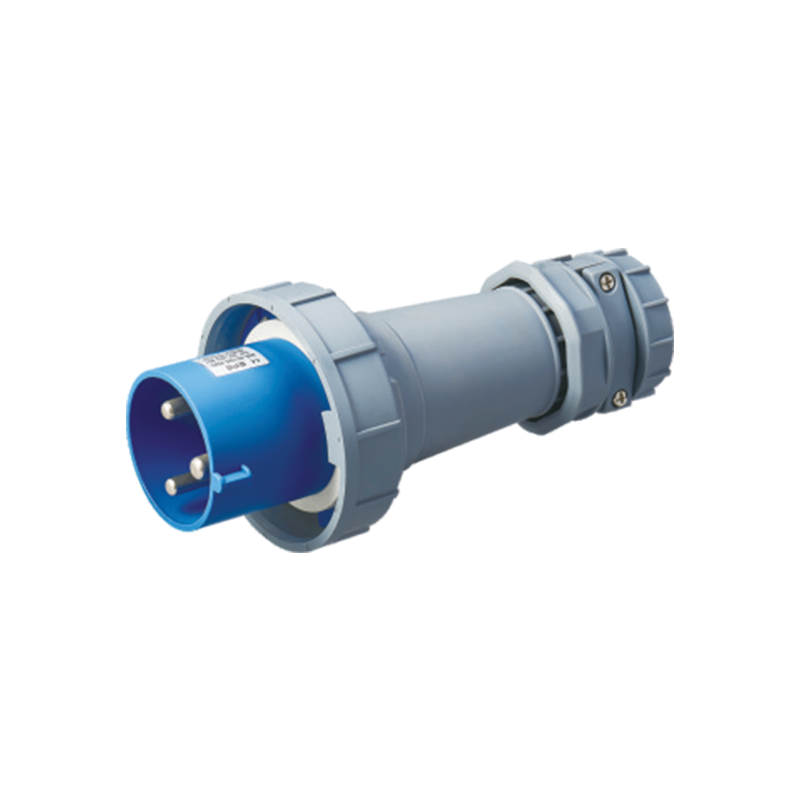

SFK-1571 SFK-3400 Industrial Plug

SFK-1571 SFK-3400

Earth contact position 6h
Rated current(A) 63 125
Pole 3

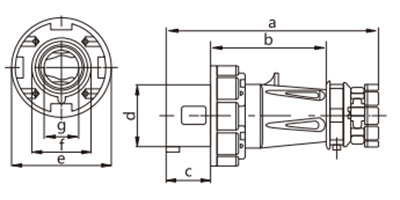

Dimension(mm) a 238.9 286
b 179.5 219
c 51.1 57
d 69.5 81.1
e 113 131.5
f 75.5 83.3
g 36.5 42.5
Cable nominal cross-section area(mm²) 10-16 25-35
Current(A):  16A,125A
Voltage(V):  220-240V~2P+E
Protection degree:  IP67

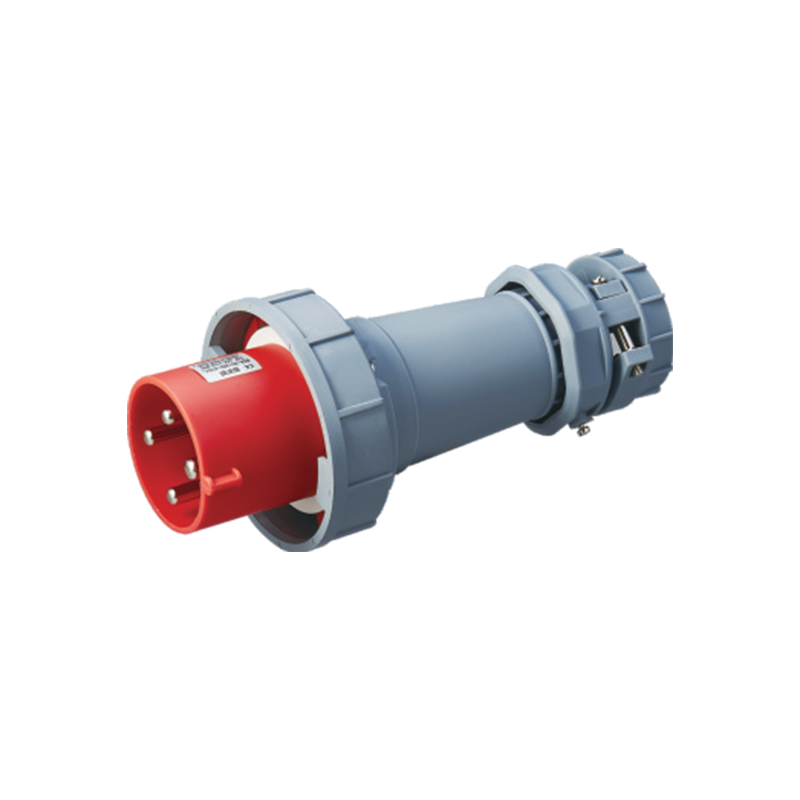

SFK-1110 SFK-1443 Industrial Plug

SFK-1110 SFK-1443

Earth contact position 6h
Rated current(A) 63 125
Pole 4

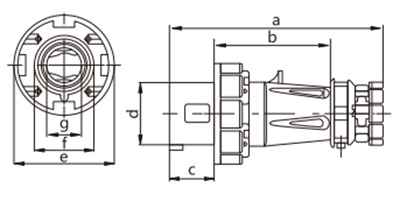

Dimension(mm) a 238.9 286
b 179.5 219
c 51.1 57
d 69.5 81.1
e 113 131.5
f 75.5 83.3
g 36.5 42.5
Cable nominal cross-section area(mm²) 10-16 25-35
Current(A):  63A,125A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

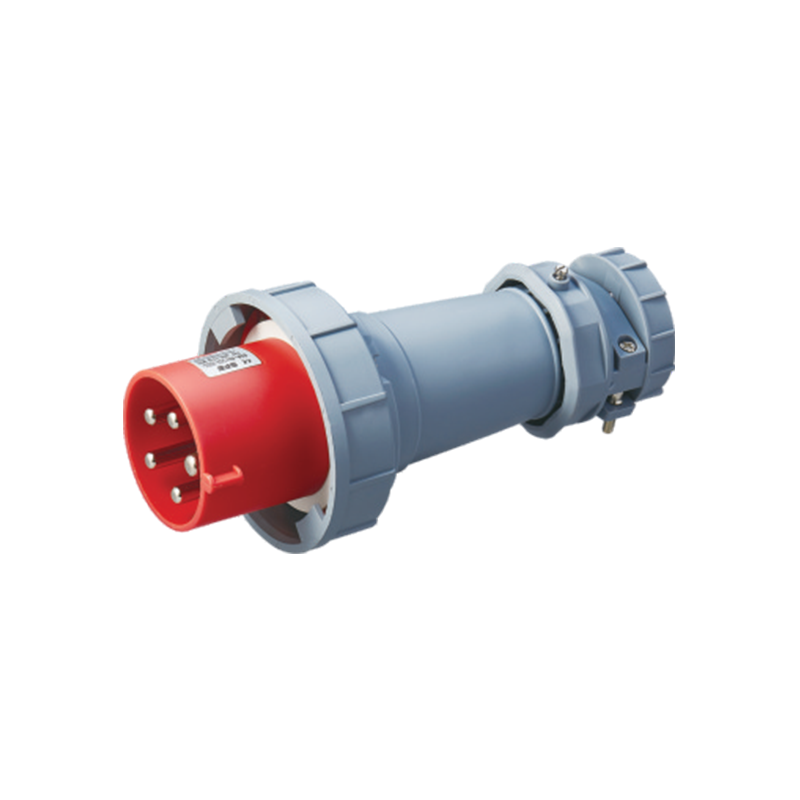

SFK-1114 SFK-1447 Industrial Plug

SFK-1114 SFK-1447

Earth contact position 6h
Rated current(A) 63 125
Pole 5
Dimension(mm) a 238.9 286
b 179.5 219
c 51.1 57
d 69.5 81.1
e 113 131.5
f 75.5 83.3
g 36.5 42.5
Cable nominal cross-section area(mm²) 10-16 25-35
Current(A):  63A,125A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67
