High Current Plugs And Sockets

Shangfeng is willing to cooperate sincerely with all customers to grow and develop together.

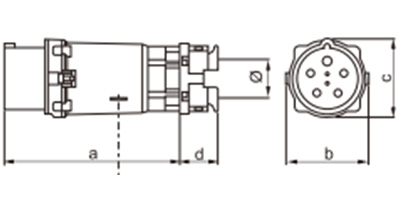

SF-0542 High Current Plugs And Sockets

SF-0542

Earth contact position 6h
Rated current(A) 200
Pole 4
Dimension(mm) a 302
b 142
c 134
d 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Current(A):  200A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

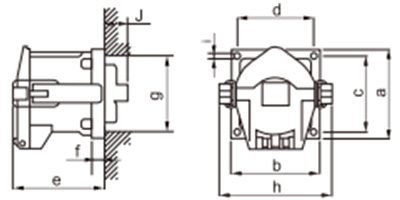

SF-3542 High Current Plugs And Sockets

SF-3542

Earth contact position 6h
Rated current(A) 200
Pole 4

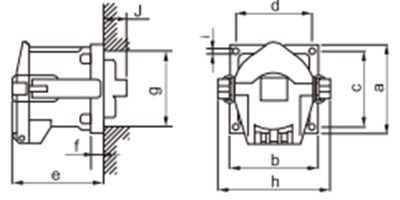

Dimension(mm) a 140
b 140
c 120
d 120
e 145
f 20
g 120
h 178
i 9
j 36
Cable nominal cross-section area(mm²) 45-66
Current(A):  200A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

SF-2542 High Current Plugs And Sockets

SF-2542

Earth contact position 6h
Rated current(A) 200
Pole 4
Dimension(mm) a 328
b 162
c 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Current(A):  200A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

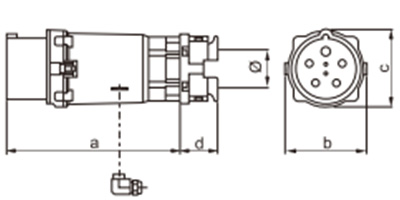

SF-0552 High Current Plugs And Sockets

SF-0552

Earth contact position 6h
Rated current(A) 200
Pole 5
Dimension(mm) a 302
b 142
c 134
d 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Current(A):  200A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

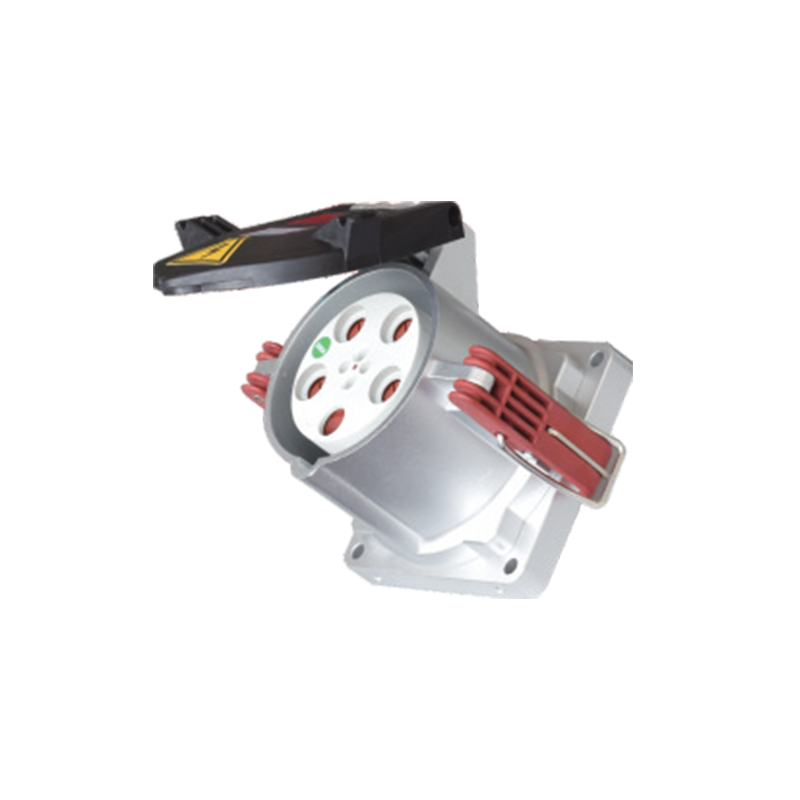

SF-3552 High Current Plugs And Sockets

SF-3552

Earth contact position 6h
Rated current(A) 200
Pole 5
Dimension(mm) a 140
b 140
c 120
d 120
e 145
f 20
g 120
h 178
i 9
j 36
Cable nominal cross-section area(mm²) 45-66
Current(A):  200A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

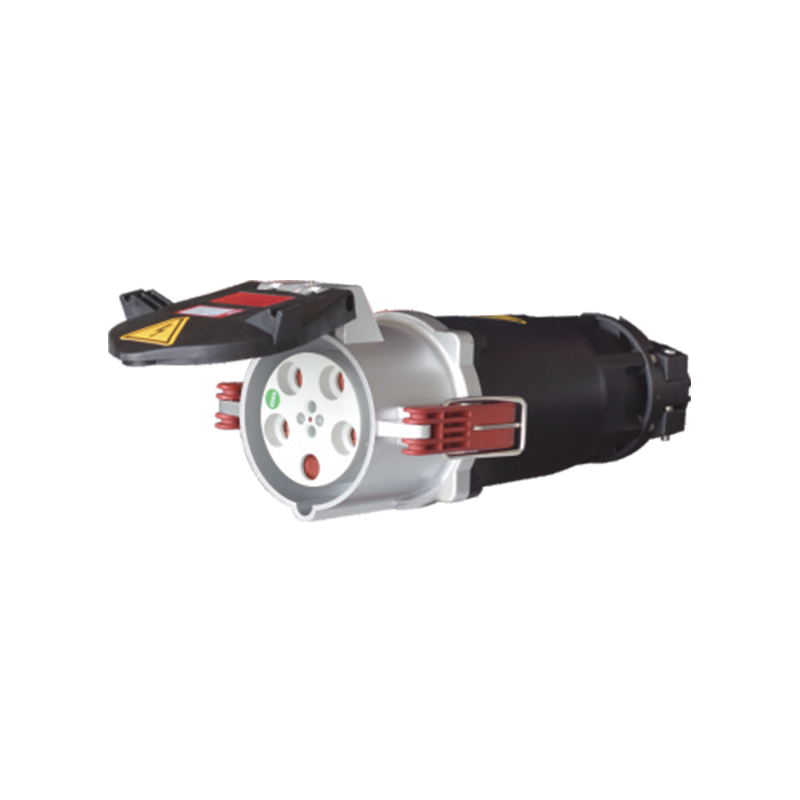

SF-2552 High Current Plugs And Sockets

SF-2552

Earth contact position 6h
Rated current(A) 200
Pole 5
Dimension(mm) a 328
b 162
c 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Current(A):  200A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

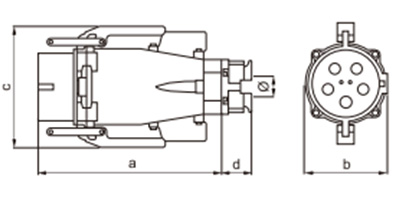

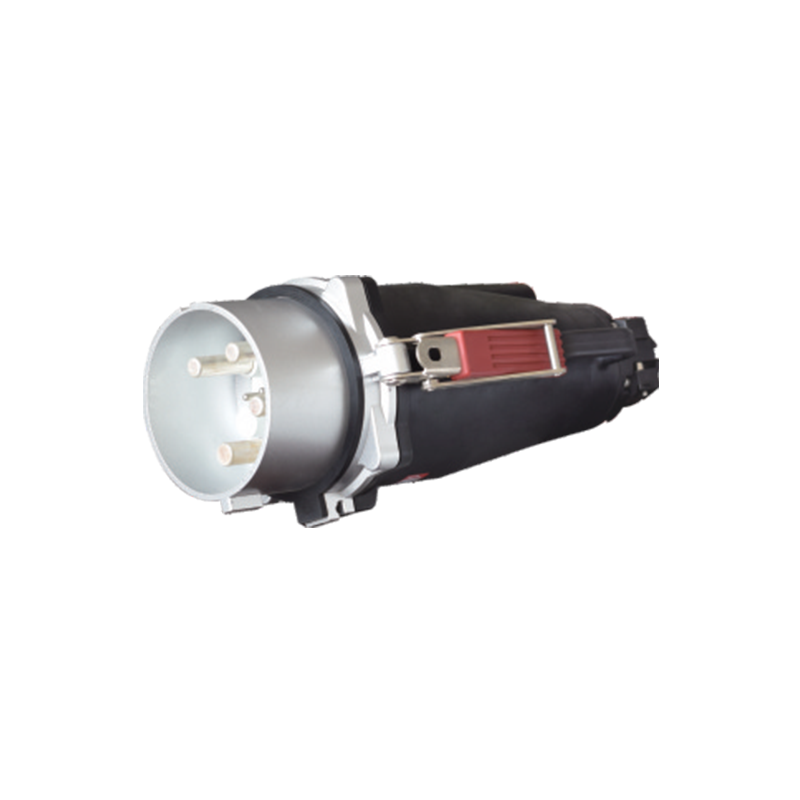

SF-0642 SF-0742 High Current Plugs And Sockets

SF-0642 SF-0742

Earth contact position 6h
Rated current(A) 250,400
Pole 4

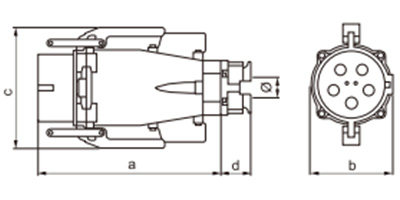

Dimension(mm) a 402
b 179
c 264
d 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Current(A):  250A, 400A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

SF-3642 SF-3742 High Current Plugs And Sockets

SF-3642 SF-3742

Earth contact position 6h
Rated current(A) 250,400
Pole 4

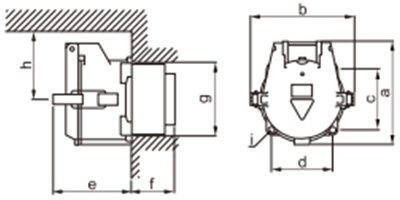

Dimension(mm) a 213
b 216
c 127
d 127
e 157
f 90
g 153
h 140
i 6
Cable nominal cross-section area(mm²) 45-66
Current(A):  250A, 400A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

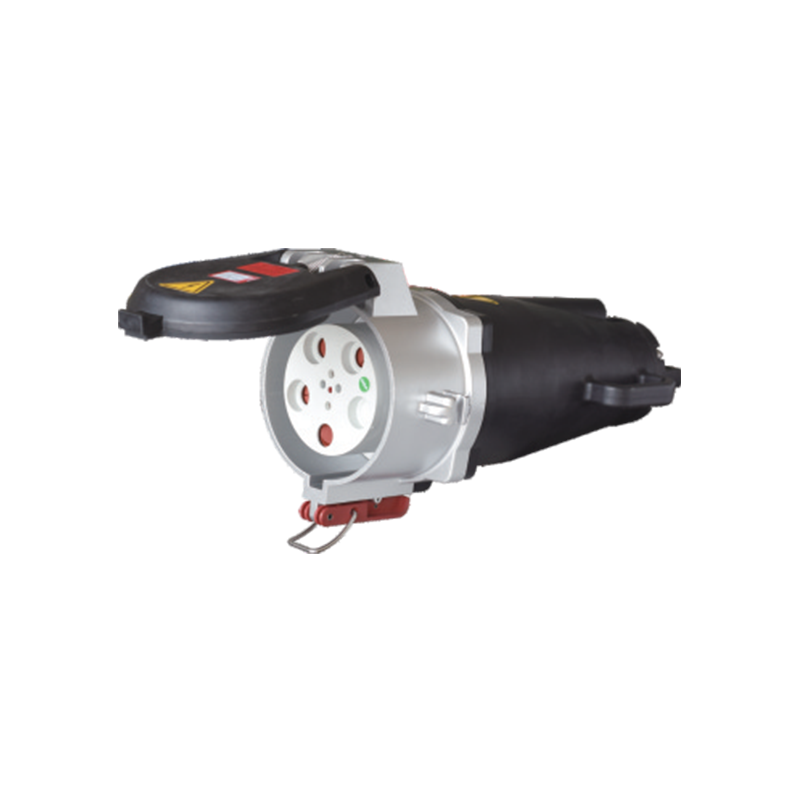

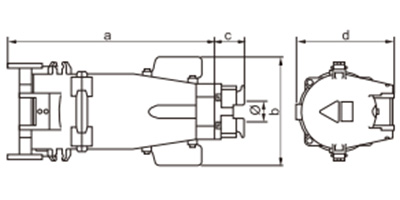

SF-2642 SF-2742 High Current Plugs And Sockets

SF-2642 SF-2742

Earth contact position 6h
Rated current(A) 250,400
Pole 4

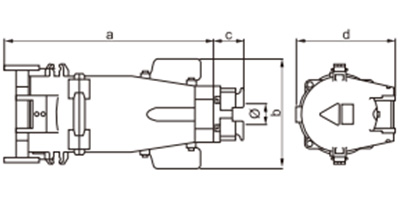

Dimension(mm) a 447
b 238
c 65
d 213
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Current(A):  250A, 400A
Voltage(V):  380-415V~3P+E
Protection degree:  IP67

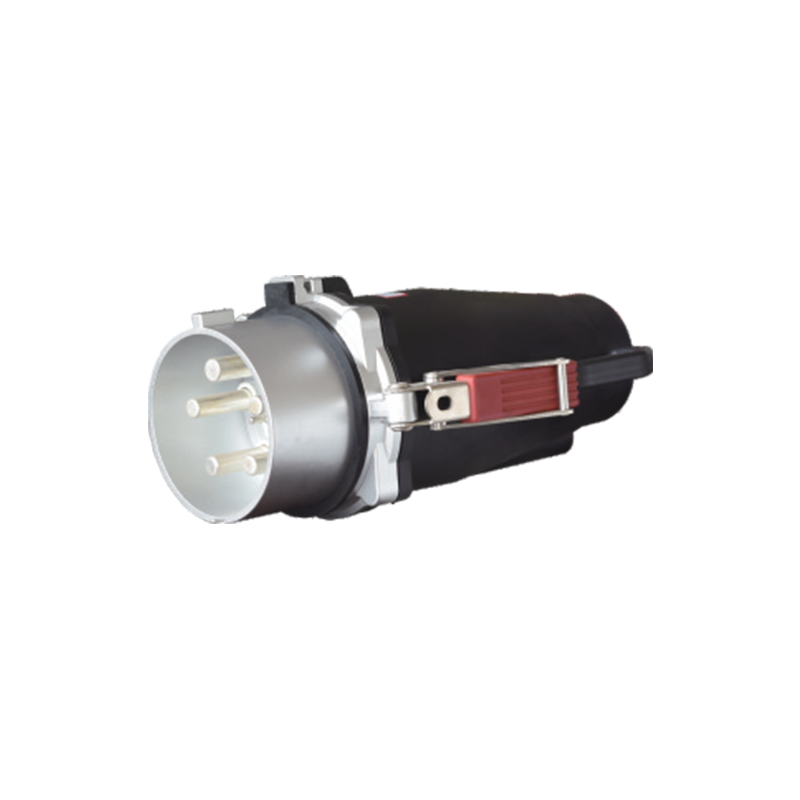

SF-0652 SF-0752 High Current Plugs And Sockets

SF-0652 SF-0752

Earth contact position 6h
Rated current(A) 250,400
Pole 5
Dimension(mm) a 402
b 179
c 264
d 65
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Current(A):  250A, 400A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

SF-3652 SF-3752 High Current Plugs And Sockets

SF-3652 SF-3752

Earth contact position 6h
Rated current(A) 250,400
Pole 5

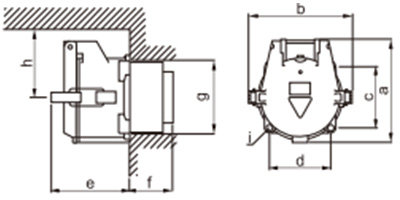

Dimension(mm) a 213
b 216
c 127
d 127
e 157
f 90
g 153
h 140
i 6
Cable nominal cross-section area(mm²) 45-66
Current(A):  250A, 400A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67

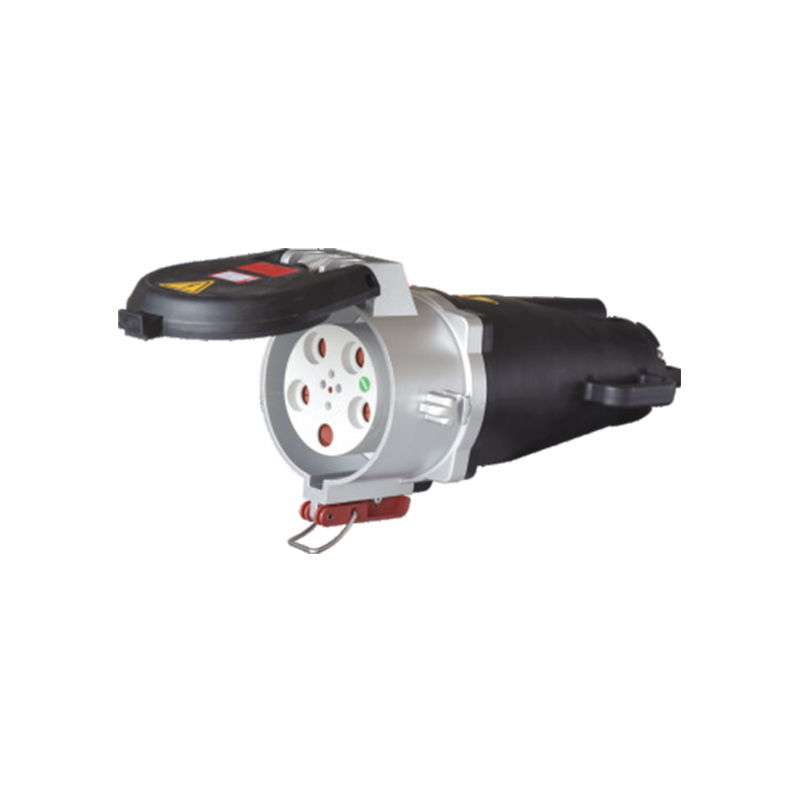

SF-2652 SF-2752 High Current Plugs And Sockets

SF-2652 SF-2752

Earth contact position 6h
Rated current(A) 250,400
Pole 5
Dimension(mm) a 447
b 238
c 65
d 213
Ø 45-66
Cable nominal cross-section area(mm²) 45-66
Current(A):  250A, 400A
Voltage(V):  220-380V~/240-415V~3P+N+E
Protection degree:  IP67
