Other Plugs And Sockets

Shangfeng is willing to cooperate sincerely with all customers to grow and develop together.

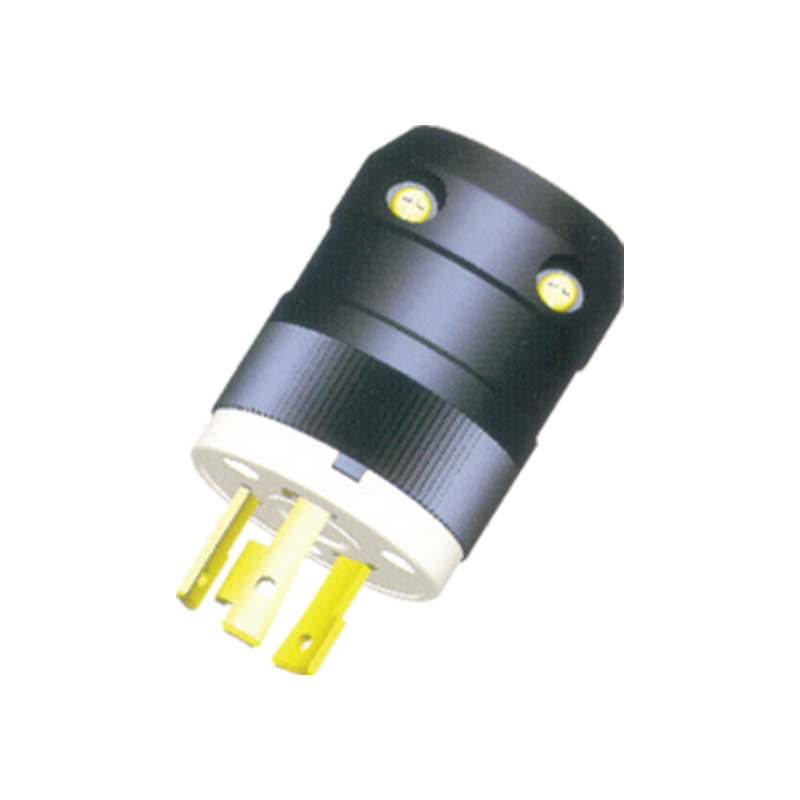

SF-023P Other Plugs And Sockets

SF-023P

Code: SF-023P

Nominal current(A):

30A
Nominal voltage(V): 220-240V~
No.poles:  2P+E
Protection degree:  IP44

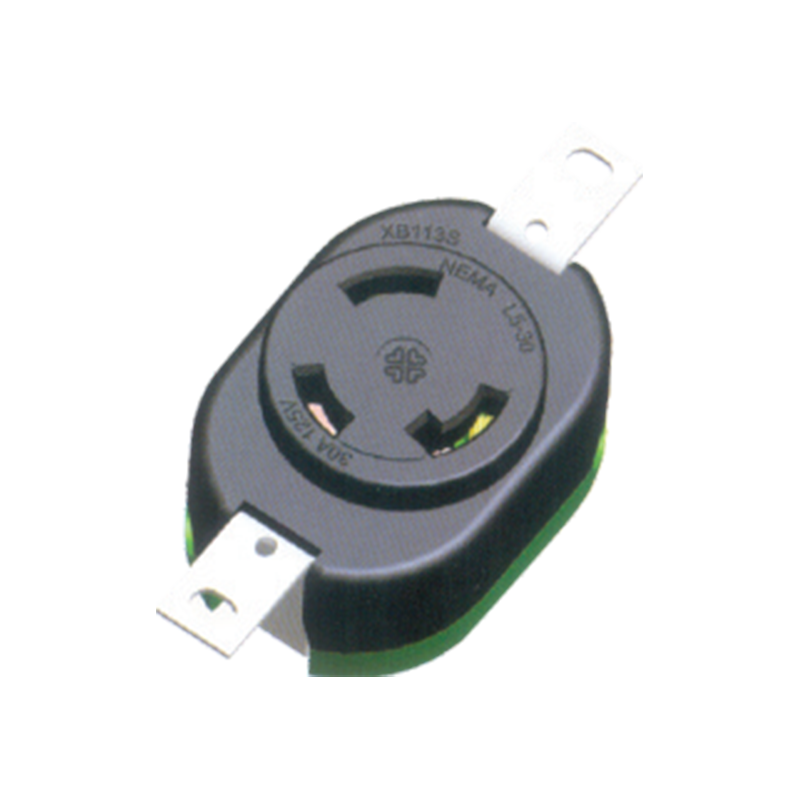

SF-123S Other Plugs And Sockets

SF-123S

Code: SF-123S

Nominal current(A):

30A
Nominal voltage(V): 220-240V~
No.poles:  2P+E
Protection degree:  IP44

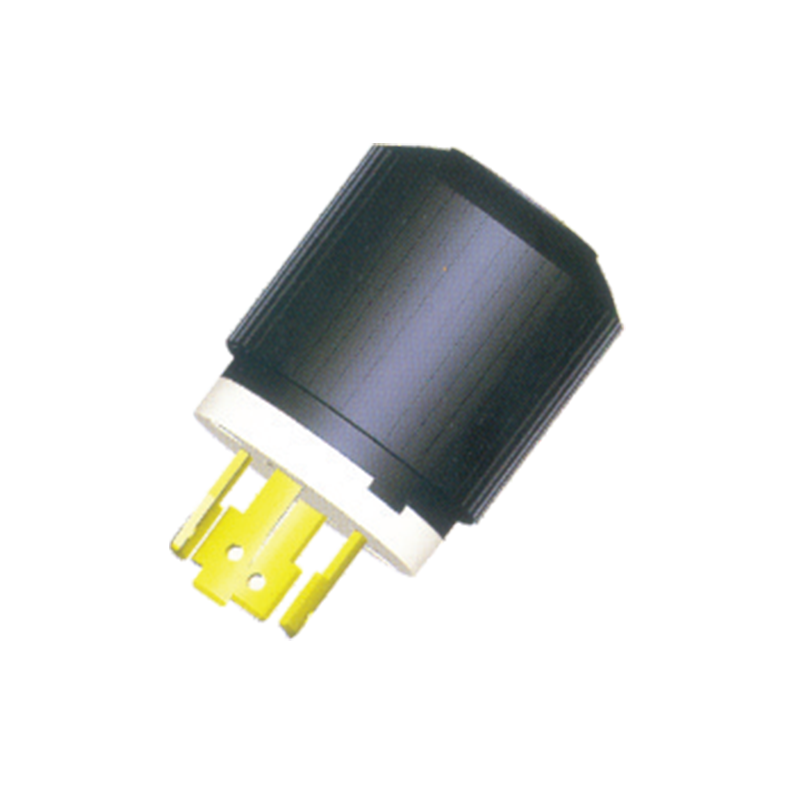

SF-024P Other Plugs And Sockets

SF-024P

Code: SF-024P

Nominal current(A):

30A
Nominal voltage(V): 380V~
No.poles:  3P+E
Protection degree:  IP44
SF-124S Other Plugs And Sockets

SF-124S

Code: SF-124S

Nominal current(A):

30A
Nominal voltage(V): 380V~
No.poles:  3P+E
Protection degree:  IP44

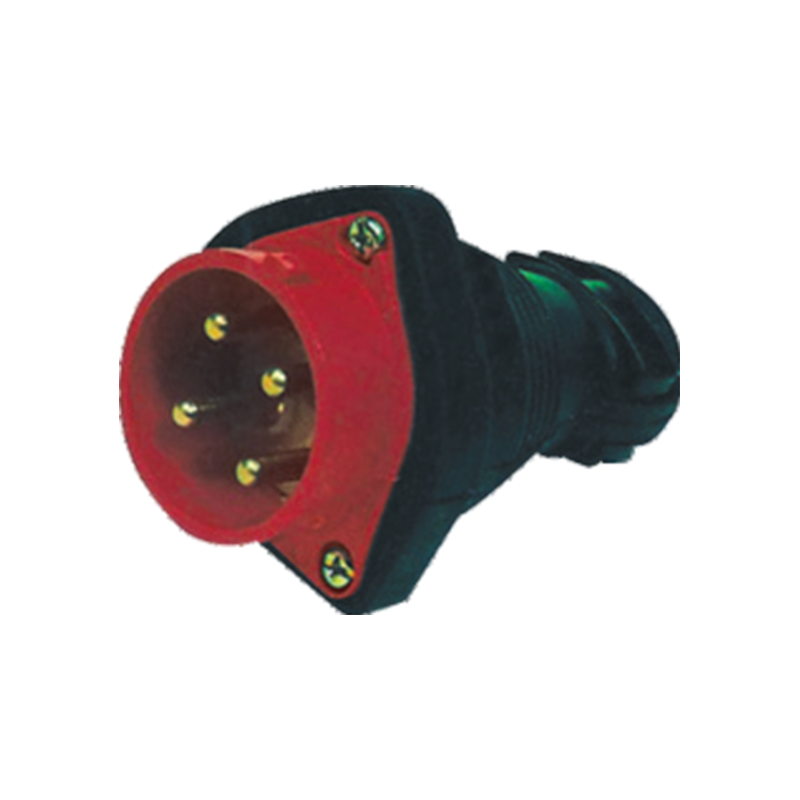

SF-204P(-204P,-404P,-804P) Other Plugs And Sockets

SF-204P(-204P,-404P,-804P)

Rated current(A) 16-25 32-80
Pole 4

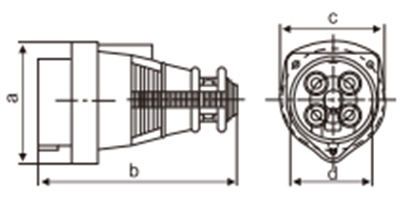

Dimension(mm) a 72 85.5
b 102 140
c 63 75
d 47 61
Current(A):  16-80A
Voltage(V): 380-415V~3P+E
Protection degree:  IP44

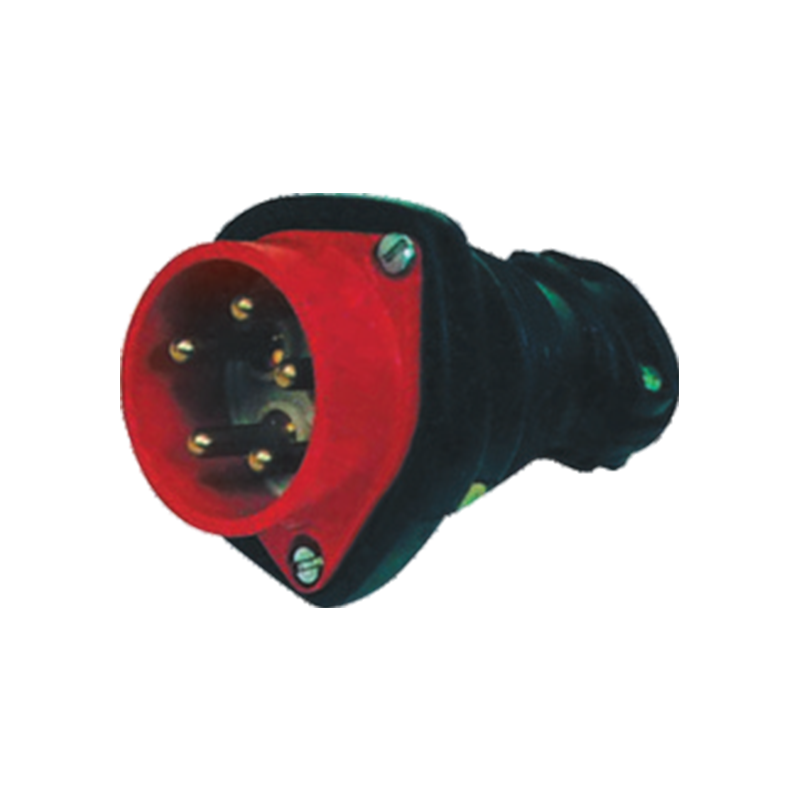

SF-205P(-205P,-405P,-805P) Other Plugs And Sockets

SF-205P(-205P,-405P,-805P)

Rated current(A) 16-25 32-80
Pole 5

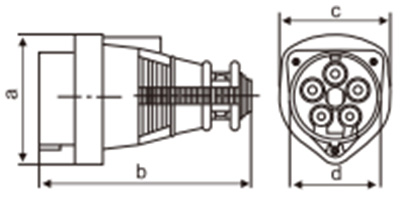

Dimension(mm) a 72 85.5
b 102 140
c 63 75
d 47 61
Current(A):  10-80A
Voltage(V): 220-415V~3P+N+E
Protection degree:  IP44

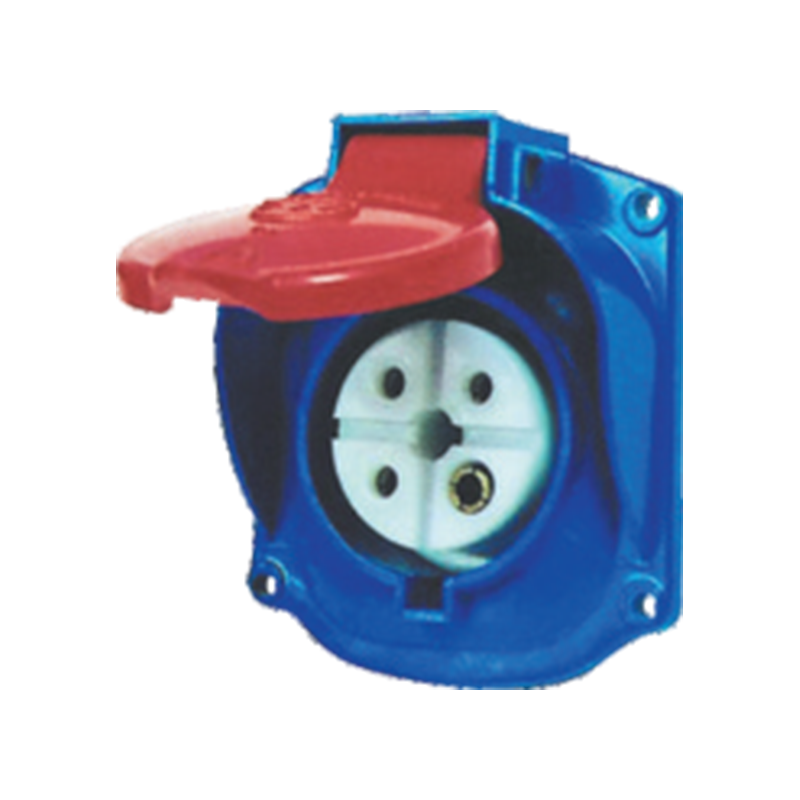

SF-204S(-204S,-404S,-804S) Other Plugs And Sockets

SF-204S(-204S,-404S,-804S)

Rated current(A) 16-25 32-80
Pole 4

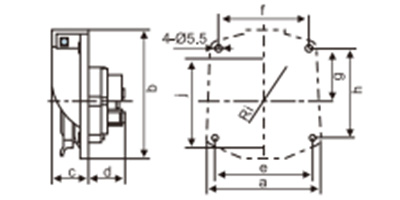

Dimension(mm) a 88 105
b 99 116
c 28 32
d 27 38
e 75 91.6
f 70 86
g 40.5 43.5
h 68.5 80.5
l 33 35
j 68.5 80
Current(A):  16-80A
Voltage(V): 380-415V~3P+E
Protection degree:  IP44

SF-205S(-205S,-405S,-805S) Other Plugs And Sockets

SF-205S(-205S,-405S,-805S)

Rated current(A) 16-25 32-80
Pole 5
Dimension(mm) a 88 105
b 99 116
c 28 32
d 27 38
e 75 91.6
f 70 86
g 40.5 43.5
h 68.5 80.5
l 33 35
j 68.5 80
Current(A):  10-80A
Voltage(V): 220-415V~3P+N+E
Protection degree:  IP44
